Infusion Therapy
Infusion Set (IV Set, Vented)
For gravity-feed IV therapy, or with a pressure infuser where an extended fluid path is needed. Use it with an IV cannula, or insert the attached needle directly into a vein.
- Range
- 21G × 1.5" needle
- Sterility
- EO sterile or non-sterile
- Shelf life
- 5 years
- Transparent drip chamber for accurate flow monitoring
- Precision roller clamp for fine flow control
- Vented spike fits all standard fluid containers

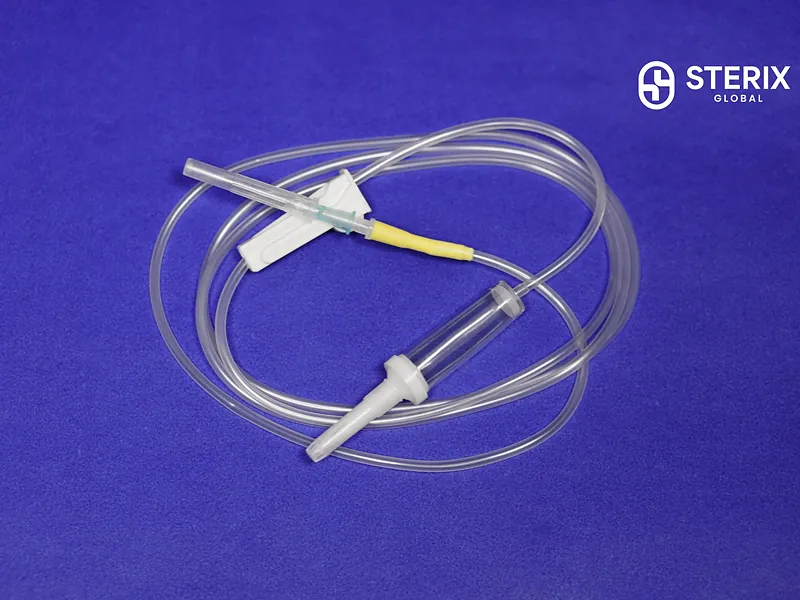

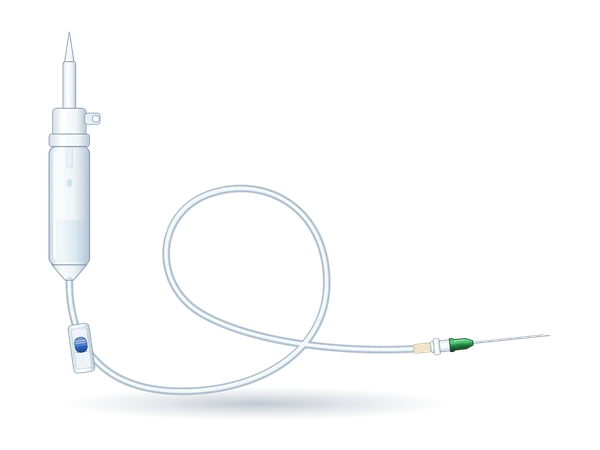

Select a thumbnail to see product photographs. The first image is an illustration.
Specifications
| Needle | 21G × 1.5" as standard. Other gauges from 16G to 30G on request. |
|---|---|
| Drop rate | 20 drops ≈ 1 mL |
| Material | Polypropylene, ABS, soft PVC, HIPS, latex rubber, SUS-304 stainless steel |
Variants

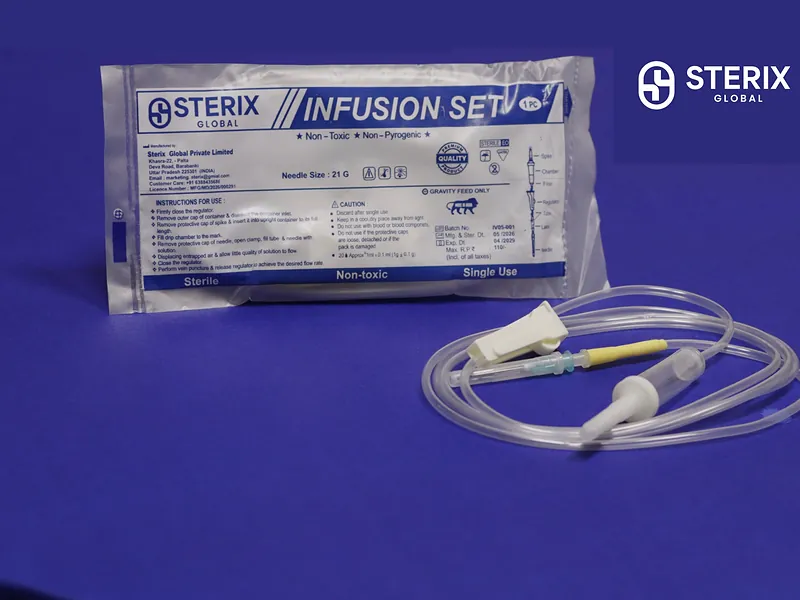

Economy IV SetPrinted pouch
IV Set PremiumIndividual blister pack
Supply
| Sterility | Ethylene oxide (EO) sterile, or non-sterile |
|---|---|
| Packing | Economy: printed pouch. Premium: individual blister pack. |
| Shelf life | 5 years |
| Device class | Class B, Medical Devices Rules, 2017 (India) |
| Samples | Available on request |
