Infusion Therapy
IV Cannula
Winged cannula with an injection port, for infusing fluids, drugs and blood components, and for placing vascular access devices.
- Range
- 14G to 26G
- Sterility
- EO sterile or non-sterile
- Shelf life
- 5 years
- Flexible wings for secure, comfortable fixation
- Integrated injection port for intermittent medication
- Colour-coded by gauge to international convention

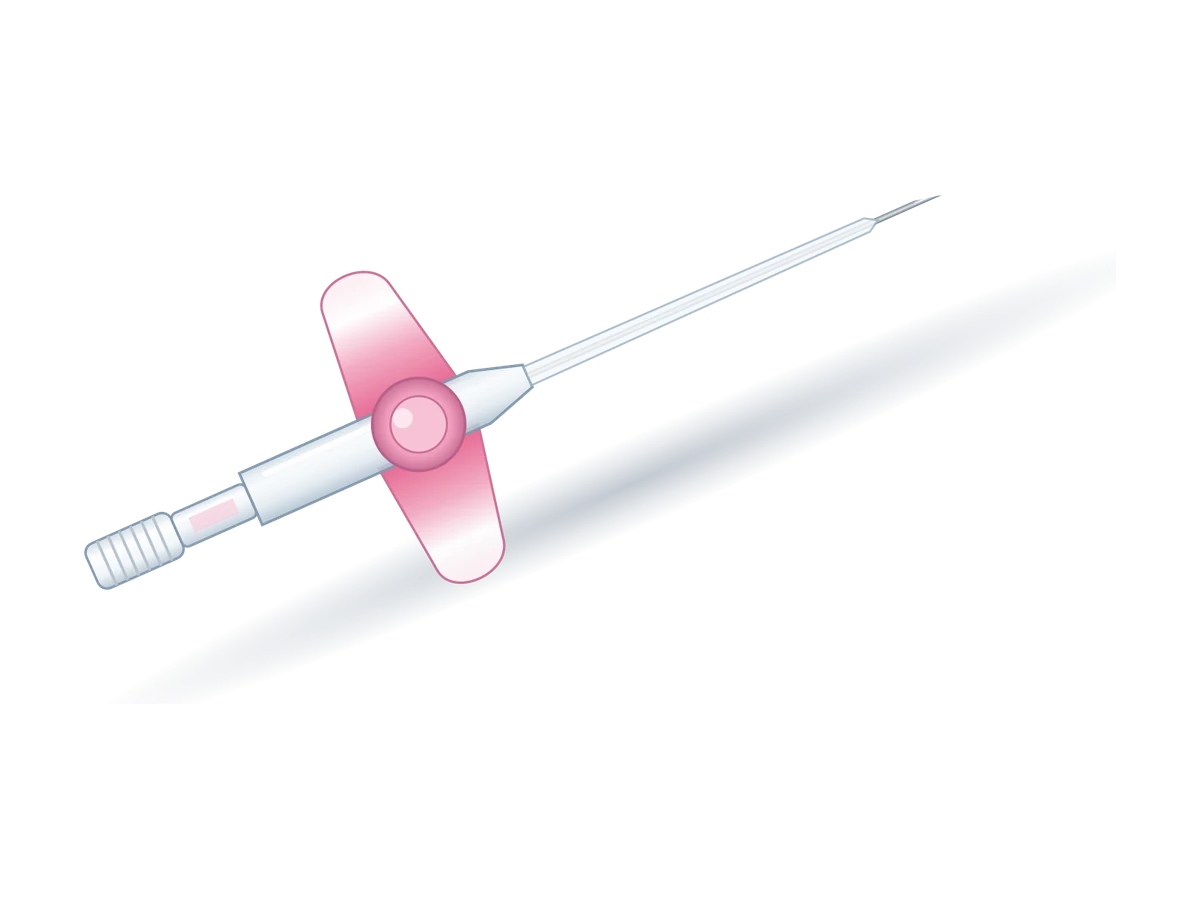

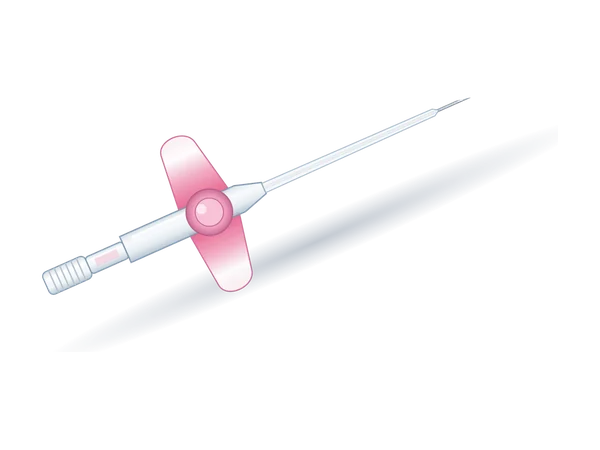

Select a thumbnail to see product photographs. The first image is an illustration.
Specifications
| Gauges | 14G16G17G18G20G22G24G26G |
|---|---|
| Material | Polypropylene, ABS, soft PVC, HIPS, stainless steel |
Colour code (ISO 10555-5)
14GOrange
16GGrey
17GWhite
18GGreen
20GPink
22GBlue
24GYellow
26GViolet
Supply
| Sterility | Ethylene oxide (EO) sterile, or non-sterile |
|---|---|
| Shelf life | 5 years |
| Device class | Class B, Medical Devices Rules, 2017 (India) |
| Samples | Available on request |
More in infusion therapy
21G × 1.5" needle
Infusion Set (IV Set, Vented)
For gravity-feed IV therapy, or with a pressure infuser where an extended fluid path is needed.
View product
18G needle

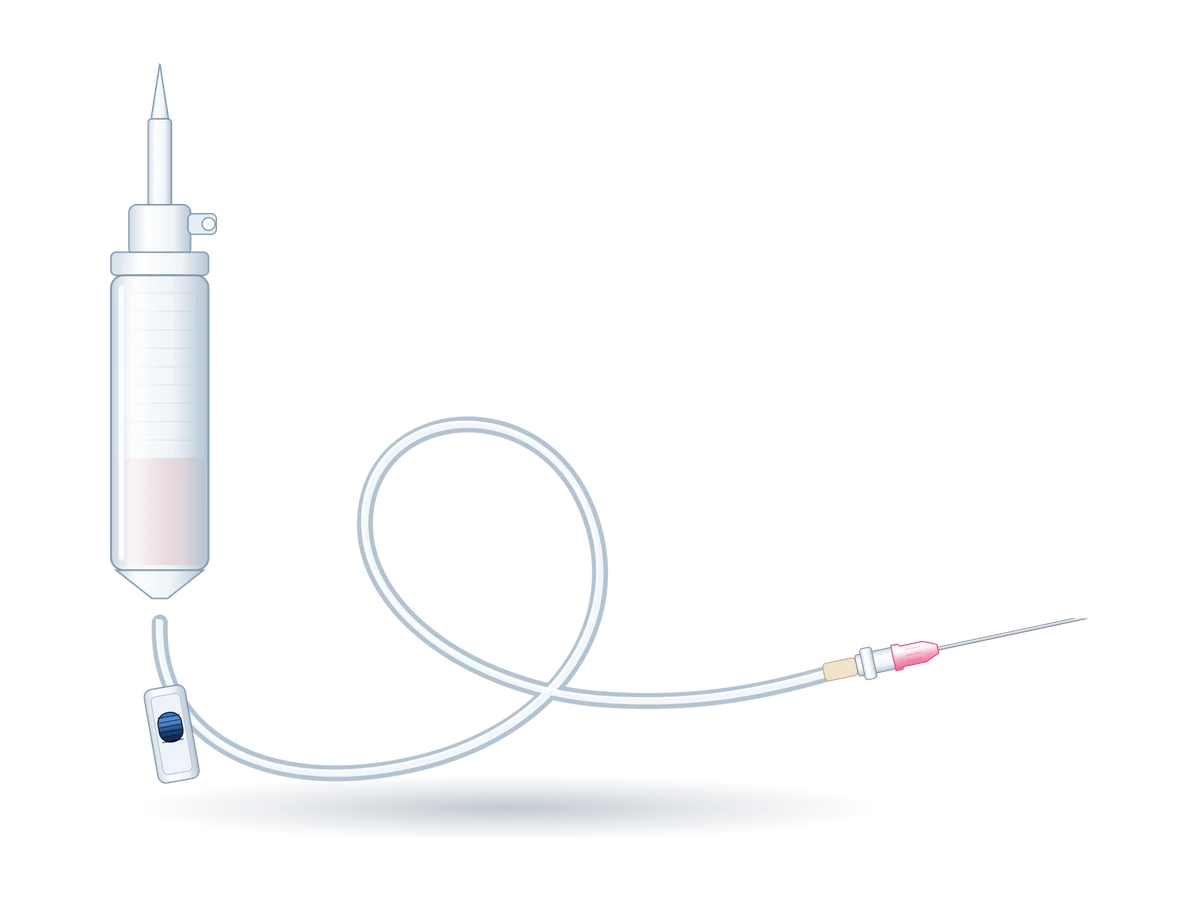

Blood Transfusion Set (BT Set, Vented)
For delivering measured, regulated blood and blood components to the patient.
View product
18G to 25G

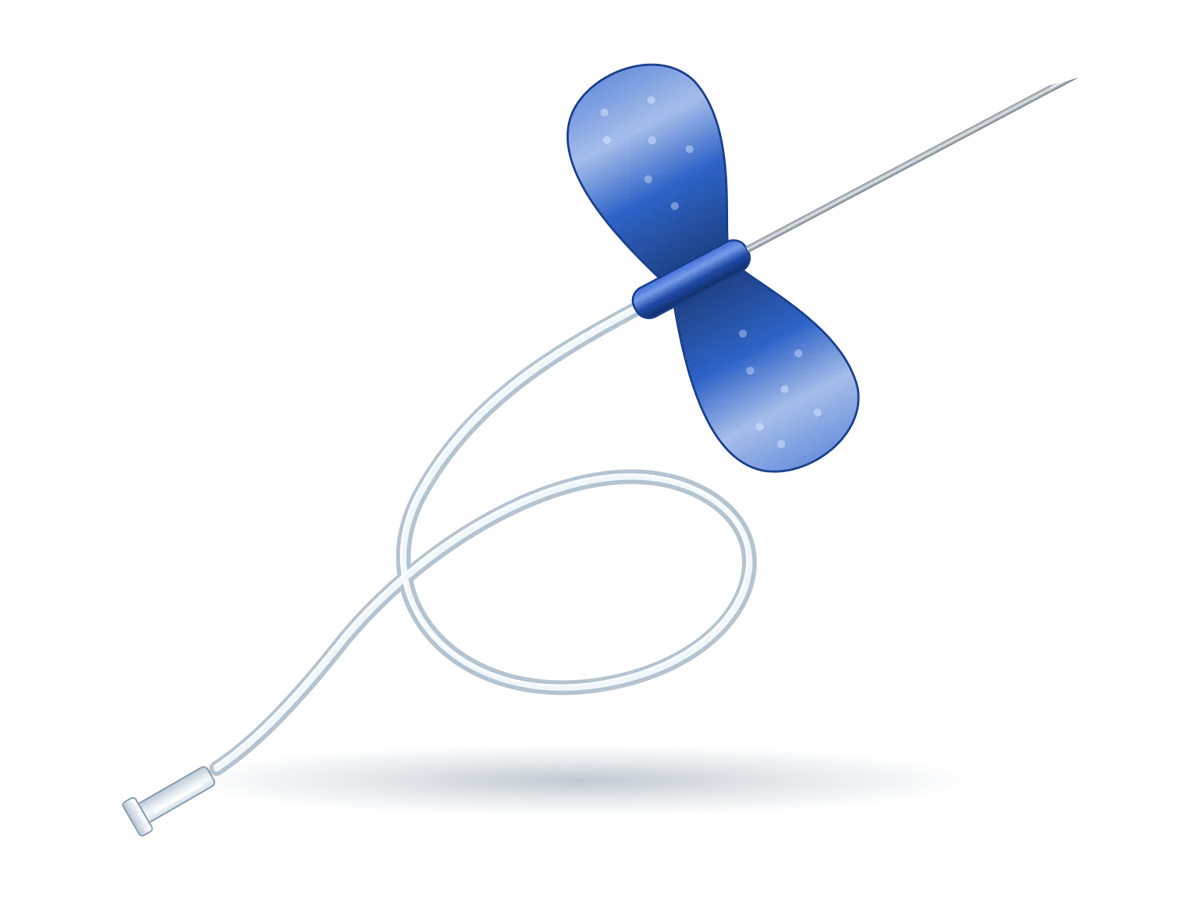

Scalp Vein Set
